04-07 6.0L Performance Power Package

Description

Performance Package for 2004-2007 Ford 6.0L Powerstroke.

Garrett PowerMax Stage 1 Turbocharger # 772441-5002S
New Turbocharger… No Core Charge
Fits 6.0L with production date after 9/2003

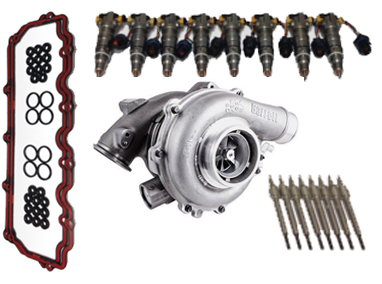

Kit Includes:
8 – Remanufactured Performance 40HP Injectors. (New Spool Valves & Nozzles in every rebuild)
2 – Valve Cover Gaskets
1 – Set of Glow Plugs
1 – Garrett PowerMax Stage 1 Turbocharger

$1200.00 Injector Core Charge
*Never pay a Core Charge if returned within 30 days*
Please read our Core Policy

Turbocharger Information:

– Model years, 2004-2007 (PN 772441-5001s) 6.0L Power Stroke engine
– GT3788VA Turbo
– Features the Garrett patented Advanced Variable Nozzle Turbine (AVNT) design for increased compressor flow and boost response
– Utilizes nine movable vanes which significantly increase turbine efficiency and improve engine performance from idle launch through peak torque
– Patented integral electro-hydraulic actuation and proportional solenoid for infinitely variable control
– Larger compressor wheel over stock increases maximum power range while keeping turbo speeds down for the same power output
– Supports up to an additional 175 HP over stock with no sacrifice in drivability
– Suitable as a performance upgrade or replacement for original equipment
– Outline interchangeable for a perfect fit each and every time

Compressor Wheel Inducer: 63.5mm
Compressor Wheel Exducer: 88mm
Compressor Wheel Trim: 52
Turbine Wheel Inducer: 72.5mm
Turbine Wheel Exducer: 66.5mm
Turbin Wheel Trim: 84
Turbine Housing: .90
Turbine Vanes: Altered for Higher Flow
