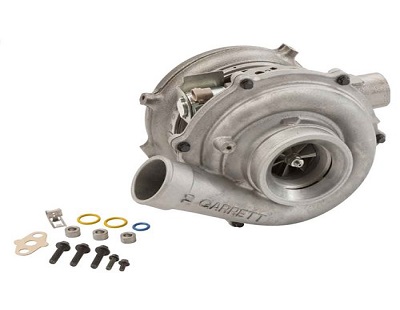

04-07 Ford 6.0L Powerstroke Turbocharger

Description

Ford 6.0L Powerstroke Turbocharger
Fits 2004-2007 Ford 6.0L Powerstroke

Options:
Reman – ReVette Premium Turbochargers… Completely rebuilt and balanced. 1 year warranty
Black Widow – ReVette Premium Performance Turbocharger
New Garrett – Genuine Garrett Turbocharger with 2 year factory warranty
Garrett PowerMax – Supports up to an additional 175 HP over stock with no sacrifice in drivability

Fits 6.0L with production date after 9/29/2003

Cross Reference # 743250-9014, 772441-5001S, 772441-5002S, GT3788V, 743250-5024S, 743250-5025S, GT3782VA, 5C3Z-6K682

$300.00 Core Charge
*Never pay a Core Charge if returned within 30 days*
Please read our Core Policy

Black Widow Features:
– Improved Throttle Response
– Increased Horsepower (roughly 25-40 added HP)
– Lower EGT’s

Garrett PowerMax Features:

• Features the Garrett patented Advanced Variable Nozzle Turbine (AVNT) design for increased compressor flow and boost response
• Utilizes nine movable vanes which significantly increase turbine efficiency and improve engine performance from idle launch through peak torque
• Patented integral electro-hydraulic actuation and proportional solenoid for infinitely variable control
• Larger compressor wheel over stock increases maximum power range while keeping turbo speeds down for the same power output
• Supports up to an additional 175 HP over stock with no sacrifice in drivability
• Suitable as a performance upgrade or replacement for original equipment
• Directly interchangeable with stock turbo for a perfect fit each and every time

Specifications:

• Compressor Wheel Inducer: 63.5mm
• Compressor Wheel Exducer: 88mm
• Compressor Wheel Trim: 52
• Turbine Wheel Inducer: 72.5mm
• Turbine Wheel Exducer: 66.5mm
• Turbine Wheel Trim: 84
• Turbine Housing: .90
• Turbo Vanes Altered for Higher Flow
