2003 ONLY Ford 6.0L Powerstroke Turbo

Description

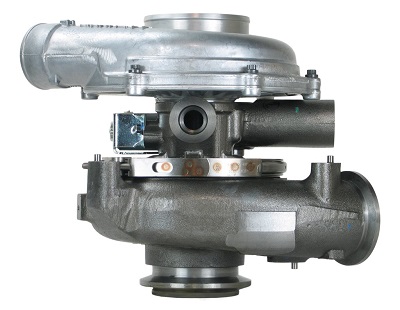

Ford 6.0L Powerstroke Turbocharger
Fits 2003 models ONLY

Options:
Reman – Completely rebuilt and balanced. 1 year warranty
New Garrett – Genuine Garrett Turbocharger with 2 year factory warranty
Garrett PowerMax – Supports up to an additional 175 HP over stock with no sacrifice in drivability

Fits 6.0L with production date before 9/29/2003

Cross Reference # 725390-9003S, 725390-9006S, 3C3Z-6K682-CCRM, 3C3Z-6K682-AARM, 3C3Z-6K682-BARM, 3C3Z-6K682-CBRM

$300.00 Core Charge
*Never pay a Core Charge if returned within 30 days*
Please read our Core Policy

PowerMax Specifications:
– Model years 2003 6.0L Power Stroke Diesel engine
– GT3788VA Turbo
– Features the Garrett patented Advanced Variable Nozzle Turbine (AVNT) design for increased compressor flow and boost response
– Utilizes nine movable vanes which significantly increase turbine efficiency and improve engine performance from idle launch through peak torque
– Patented integral electro-hydraulic actuation and proportional solenoid for infinitely variable control
– Larger compressor wheel over stock increases maximum power range while keeping turbo speeds down for the same power output
– Supports up to an additional 175 HP over stock with no sacrifice in drivability
– Suitable as a performance upgrade or replacement for original equipment
– Outline interchangeable for a perfect fit each and every time

Compressor Wheel Inducer: 63.5mm
Compressor Wheel Exducer: 88mm
Compressor Wheel Trim: 52
Turbine Wheel Inducer: 72.5mm
Turbine Wheel Exducer: 66.5mm
Turbin Wheel Trim: 84
Turbine Housing: .90
Turbine Vanes: Altered for Higher Flow
